LRMAIQS 184
Artikelnummer:

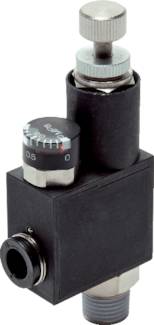

Tryckregulator R 1/8" -4mm, med mätare, IQS standard
Tryckregulator R 1/8" -4mm, med mätare, IQS standard
Beskrivning
| P | R 1/8" |
| A [mm] | 4 |
| Version display | with pressure gauge |
| Version connection | Thread-hose |
| Note | RoHs-compliant |
| Weight | 55 g / pc. |
| Customs duty number: | 84812090 |
Description
Materials:
Body: nickel-plated brass / PBT, seal: NBR, holding claws: stainless steel, cartridge: nickel-plated ZNDC
Temperature range:
0°C to max. +60°C
Operating pressure:
0 - 9 bar
Setting pressure:
1 - 8 bar
Media:
Compressed air, neutral gases

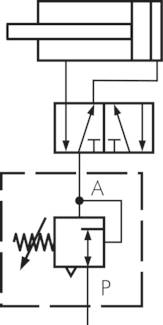

Function:
•If the primary pressure flows from P, reduced pressure escapes at the connection side. •The compact construction with integrated quick connector permits a flexible assembly. •The regulator is provided with overpressure protection, which especially simplifies the installation of pneumatic equipment.
*use these connections only with air. They are not suitable for use with water or other liquids, or other gases than air. The connecting pieces should be tightened onto the stud's hexagon with a spanner
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
